SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging

SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging
SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging
SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: Safegas
Orzecznictwo: EX/ATEX
Numer modelu: SKY2000
Dokument: SKY2000 Datasheet.pdf
Minimalne zamówienie: 1
Cena: negocjowalne
Szczegóły pakowania: Karton
Czas dostawy: 3 dni robocze
Zasady płatności: T/T
Możliwość Supply: 100 sztuk/dzień
Najlepsza cena Skontaktuj się teraz
Szczegóły informacji
Wykryto gaz: WSPÓŁ Zakres pomiarowy: 0-500 ppm / 0-1000 ppm
Rezolucja: 1 ppm Czas reakcji: ≤20s
Stopień ochrony: IP66 Temperatura pracy: -20 ℃ ~ 50 ℃
Waga: 300 g Zasada wykrywania: Elektrochemiczny
Język operacyjny: chiński / angielski

opis produktu

SKY2000 Portable Pumping Carbon Monoxide (CO) Gas Detector With IP66, Optional Data Logging
SKY2000 is a fast-response, high-precision portable gas detector designed for carbon monoxide (CO) detection. It uses a built-in sampling pump for active gas sampling, equipped with an electrochemical sensor supporting dual ranges 0-500 ppm / 0-1000 ppm and resolution 1 ppm. With professional explosion-proof certification, IP66 protection and triple alarm, it provides reliable safety monitoring for industrial sites and confined spaces.
Product Overview
SKY2000 is a compact and robust portable pumping gas detector optimized for carbon monoxide measurement. It features a high-flow built-in sampling pump to ensure fast gas intake and stable response. The detector is equipped with an LCD dot matrix display with backlight, supports zero calibration and span calibration to maintain long-term accuracy.
It provides optional data logging that can store up to 100,000 readings and export data to a PC via USB. It supports one-key factory reset, gas unit switching, and sound-light-vibration triple alarm to ensure timely warning. The whole machine adopts high-intensity engineering plastic housing, with explosion-proof grade Ex ia IIC T4 Ga and protection grade IP66, suitable for various harsh working environments.

Product Pictures

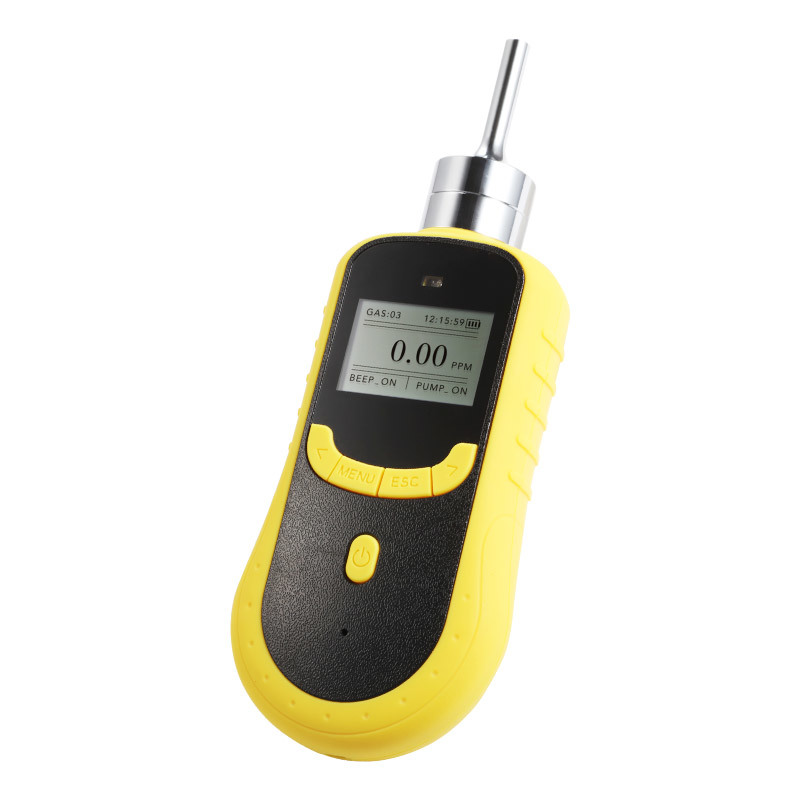

SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging 0

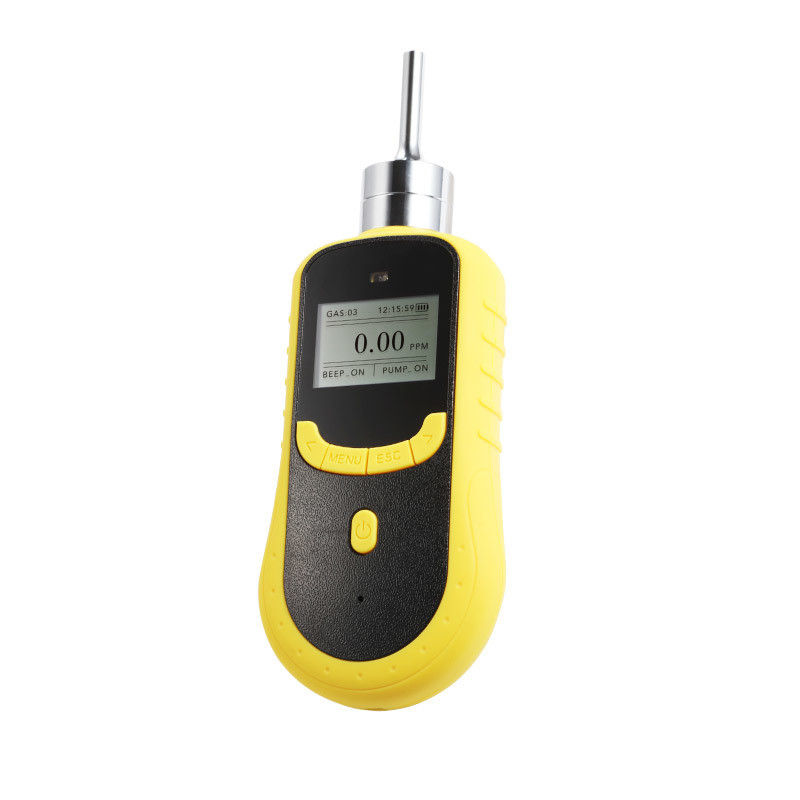

SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging 1

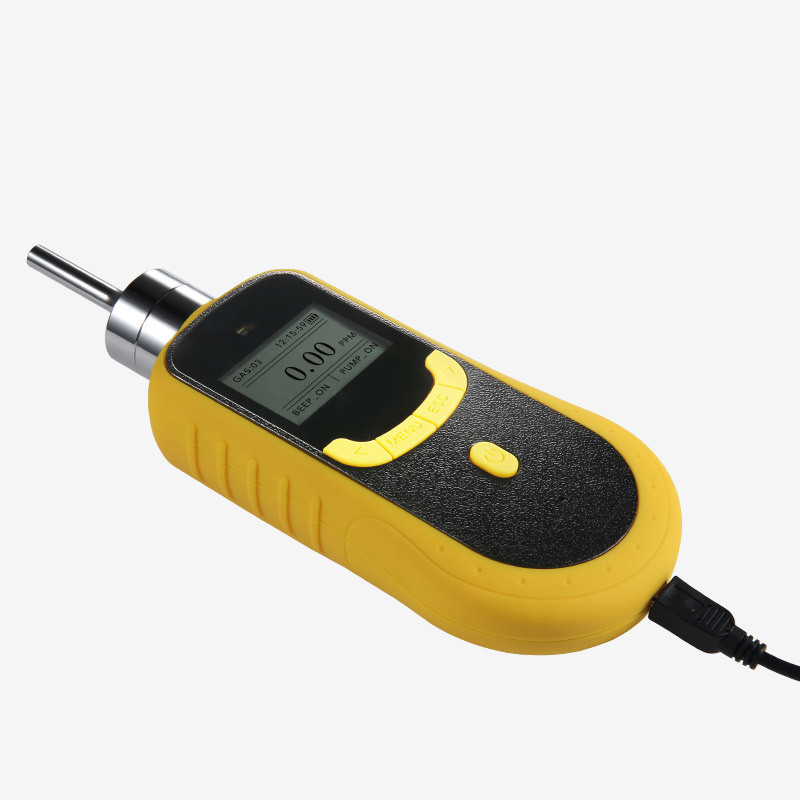

SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging 2

SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging 3

SKY2000 Portable Pumping CO Gas Detector with IP66 Protection and Optional Data Logging 4


Key Technical Specifications

Parameter Value
Model SKY2000
Detected Gas Carbon Monoxide (CO)
Detection Principle Electrochemical
Sampling Method Built-in pumping suction
Measuring Range 0-500 ppm / 0-1000 ppm
Resolution 1 ppm
Precision ≤±1-5% F.S.
Response Time ≤20S
Recovery Time ≤10S
Repeatability ≤±1%
Zero Shift ≤±1% F.S./year
Linearity Error ≤±1%
Display LCD dot matrix with backlight
Gas Unit Switchable
Data Logging (Optional) 100,000 readings; export via USB to PC
Alarm Mode Sound + Light + Vibration
Explosion-proof Grade Ex ia IIC T4 Ga
Protection Grade IP66
Operating Temperature -20℃ ~ 50℃
Operating Humidity 0-95% RH (non-condensing)
Operating Time Up to 100 hours (pump off)
Dimensions 205×75×32 mm
Weight 300 g
Operating Language Chinese / English
Main Product Features
  • Built-in high-speed sampling pump - Fast suction speed and high flow rate ensure rapid and stable detection.
  • High-precision electrochemical sensor - Stable performance, low drift, and accurate measurement of CO concentration.
  • Dual measuring range available - Supports 0-500 ppm and 0-1000 ppm for flexible application scenarios.
  • Clear LCD dot matrix display - With backlight for clear reading in low-light or complex environments.
  • Dual calibration functions - Zero calibration and span calibration ensure long-term measurement accuracy.
  • Optional large-capacity data logging - Stores up to 100,000 records and supports USB data export.
  • Triple alarm system - Sound, light and vibration alarms work simultaneously to avoid missing warnings.
  • One-key factory reset - Quickly restore default settings to prevent misoperation.
  • Industrial-grade rugged design - IP66 waterproof and dustproof, suitable for harsh industrial environments.
Carbon Monoxide (CO) Application & Detection Guidance
Carbon monoxide (CO) is a common toxic and flammable gas in industrial production, which may cause poisoning or explosion hazards when leaked or accumulated. SKY2000 uses pump suction to realize real-time and accurate CO monitoring, helping operators detect risks early and ensure on-site safety.
Typical Applications for CO Detection
  • Confined space entry - Tanks, sewers, tunnels (combustion engine exhaust)
  • Parking garages & loading docks - Vehicle exhaust accumulation
  • Industrial hygiene - Worker exposure monitoring in steel mills, refineries, chemical plants
  • Coal mines - CO from blasting, diesel equipment, or coal oxidation
  • Fire & rescue - Post fire overhaul to check for lingering CO
  • Power plants & boiler rooms - Incomplete combustion monitoring
  • Warehouses with gas powered forklifts - Operator safety
Frequently Asked Questions
  • How often should I calibrate the SKY2000?
    Perform a bump test daily before use. Full calibration every 6-12 months or if readings seem inaccurate.
  • What is the pump runtime?
    With pump off: 100 hours. With pump continuously on: typically 10-15 hours (depending on duty cycle). Recharge via USB.
  • How do I export data without the docking station?
    Connect the detector to a PC via USB - it appears as a removable drive. Copy the CSV log files directly.
  • Can I use the detector in explosive atmospheres?
    Yes. It has Ex ia IIC T4 Ga certification for Zone 0, 1, 2 hazardous areas.
  • What is the lifespan of the CO sensor?
    Typically 2-3 years under normal conditions. Replace when calibration fails or response degrades.
  • Does the detector come with a water trap filter?
    Yes, a standard water/dust filter is included to protect the pump and sensor.
  • How do I perform a zero or span calibration?
    Follow the manual: expose the detector to zero air (or 100% nitrogen) for zero calibration, then to a known concentration of CO gas for span calibration.
  • What happens if the pump fails?
    The detector will show a pump failure alarm. You can still use the device in diffusion mode (gas reaches the sensor naturally), but response time will be slower.
  • Is data logging standard?
    It is optional. Please specify when ordering if you need the data logging function (100,000 records).
  • What is the warranty period?
    1 year for the detector; sensors have a shorter warranty (typically 1-2 years depending on type).
